Types of Pulley
4 Minutes
Types of pulleys explained for students, covering fixed, movable, and compound pulleys and how they reduce lifting effort. A Tamil science lesson.
- Fixed pulleys in flagpoles and wells and why effort equals load
- How movable pulleys halve the required effort in elevator systems
- Using a compound pulley with movable wheels to easily lift a person
What this lesson teachesRead the lesson as text

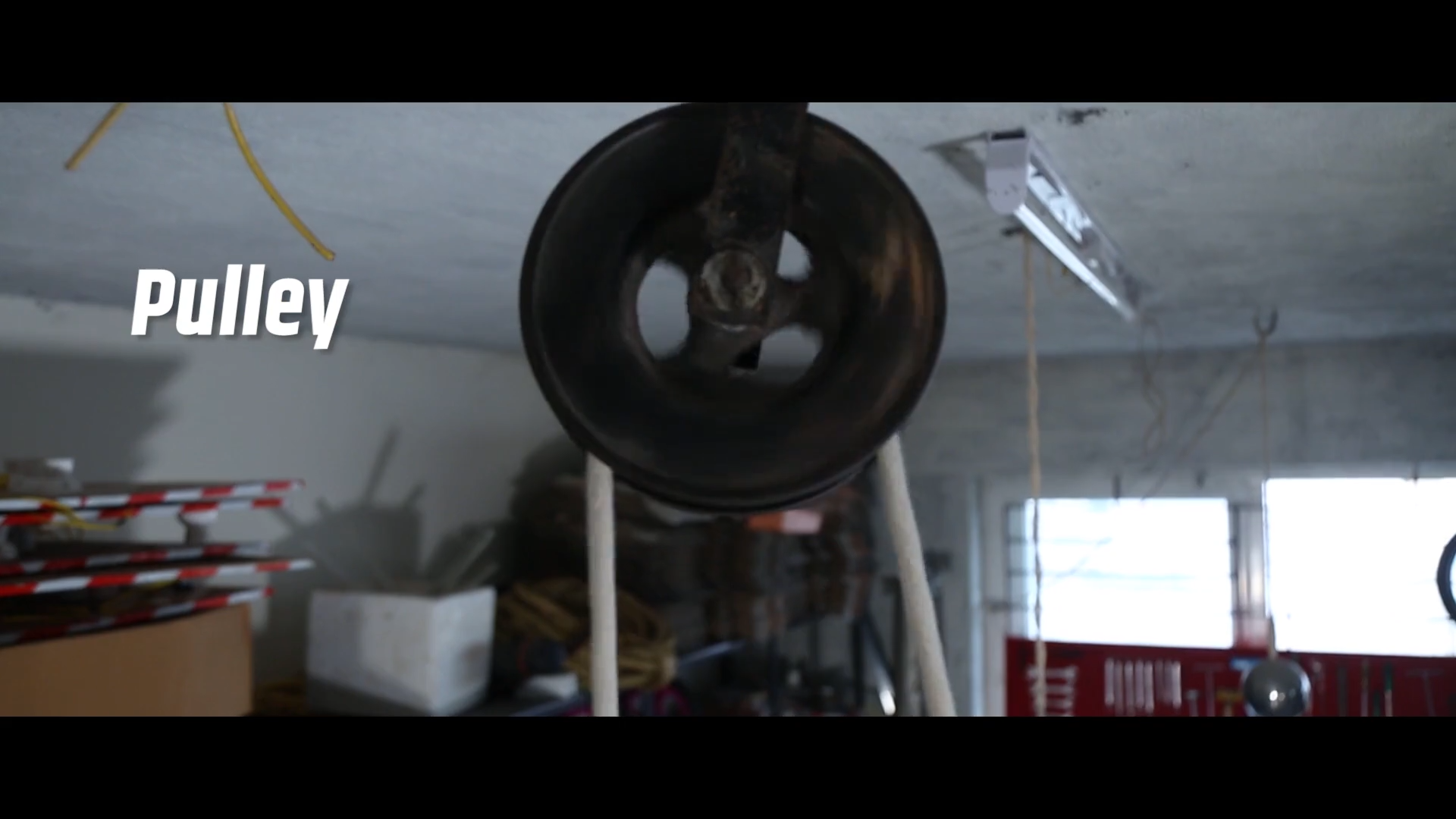

A pulley is a simple machine made of a wheel that rotates with a rope to lift loads. The three main types of pulleys are fixed pulleys, movable pulleys, and compound pulleys.
Fixed pulleys
A fixed pulley stays in one fixed position and does not travel. It operates with an effort arm where a person pulls the rope and a load arm where the object, such as a well bucket or a school flag, is attached. In a fixed pulley, the force applied to the effort arm equals the force acting on the load arm. Because no effort is reduced, lifting heavy loads or lifting one's own body weight with a fixed pulley remains very hard.
Movable pulleys
A movable pulley has an axle that is not fixed in one spot and moves freely. One end of the rope is tied firmly to a fixed point, while the user pulls on the other end. The tied end supports half of the weight of the load, meaning the user only has to pull with the remaining half of the required force. Elevators use movable pulleys so that a motor applying a small amount of force can move multiple people up and down.
Compound pulleys
A compound pulley is a combination of fixed pulleys and movable pulleys working together. Fixed pulleys are arranged at the top of the system, while movable pulleys are arranged at the bottom. Each movable pulley doubles the force supplied at the effort arm. When a compound setup uses three movable pulleys, the input force is multiplied six times at the load arm, allowing a fifty-kilogram person to lift their own weight with ease.
Comparing the three types
- A fixed pulley keeps effort equal to the load, meaning lifting a forty-kilogram weight requires forty kilograms of pulling force.
- A movable pulley cuts the required force in half because its anchored rope end carries half the load.
- A compound pulley uses both fixed and movable wheels to multiply the pulling force several times based on the number of movable pulleys.
