Steam-Engine

2 Minutes

Steam engine working explained for kids, showing how coal, water, steam, and pistons turn the wheels of a train. A Tamil science lesson.

  • How coal heats water inside the boiler to create pressurized steam
  • How steam pushes the piston back and forth to turn train wheels
  • How smoke leaves through the chimney and why steam trains stopped
What this lesson teachesRead the lesson as text

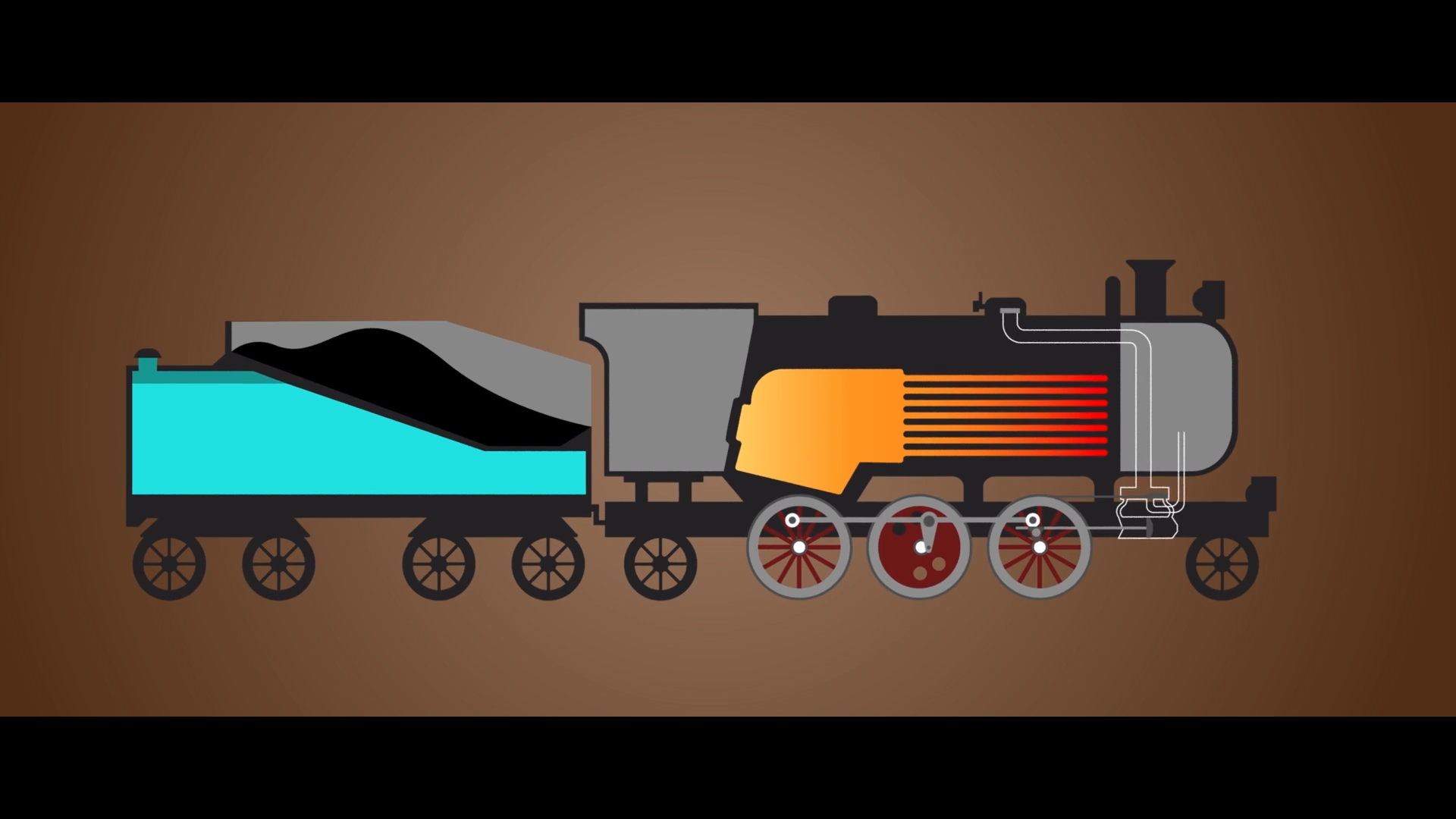

A steam engine is an engine that uses heat from burning coal to turn water into pressurized steam, which moves a piston to turn the wheels of a train. Unlike modern trains that run on electricity or diesel, early trains relied entirely on this steam power to travel.

Fuel and steam generation

A container near the engine stores coal on one side and water on the other. Inside the engine, coal burns inside a fire box that is surrounded by a boiler filled with water. As the fire heats the boiler, the water evaporates into steam. As more steam forms inside the closed boiler, high pressure builds up inside.

Regulating the steam

  • A steam dome sits at the top of the boiler with a pipe that carries pressurized steam to the cylinder.
  • Placing the steam dome at the top prevents water from entering the pipe along with the steam.
  • A safety valve (safety wall) sits near the steam dome to protect the engine.
  • If the boiler pressure becomes dangerously high, this safety valve opens to let excess steam escape.

How the piston turns the wheels

Pressurized steam travels through the pipe into a cylinder containing a movable piston connected to the wheels of the train. Steam enters through a first opening and pushes the piston forward. When that opening closes, a second opening opens, allowing steam to push the piston backward. This continuous back-and-forth movement of the piston turns the wheels and drives the train along the tracks.

Exhaust and why steam engines stopped

Used steam from the cylinder and smoke from the fire box move into a smoke box and exit into the air through a chimney. Steam engines are rarely used today because burning coal creates heavy smoke and pollution, and coal is also difficult to obtain. However, heritage steam engines can still be found running in places like Ooty.
