Slider-Crank
2 Minutes
Slider-crank mechanism explained for kids: learn how an engine converts fuel energy into rotary motion to turn wheels. A Tamil science lesson.
- How fuel chemical energy creates pressure inside an engine
- Piston reciprocating motion inside an engine cylinder
- Using a slider, crank, and connecting rod to turn bike wheels
What this lesson teachesRead the lesson as text
A slider-crank mechanism is a mechanical system that converts straight reciprocating motion into circular rotary motion, or changes rotary motion into reciprocating motion. In a motorbike, the engine serves as the heart of the vehicle, transforming the chemical energy stored in fuel like petrol or diesel into mechanical energy that drives the vehicle forward.
How fuel pressure creates motion
Just as an ox eats grass to pull a cart, an engine consumes fuel to move a vehicle. Inside an engine cylinder, small explosions of petrol generate intense pressure with no way to escape, similar to a firecracker bursting under a closed bowl and throwing it upward. This sudden pressure pushes a piston down inside the cylinder. As these tiny explosions happen continuously, the piston keeps moving rapidly up and down.
Understanding the two motions
- Reciprocating motion refers to back-and-forth or up-and-down movement along a straight line, which is how the engine piston travels.
- Rotary motion refers to circular turning movement, which is the exact motion needed to spin the wheels of a motorbike.
- Engine designers developed the slider-crank mechanism to transform the straight reciprocating motion of the piston into the rotary motion required by the wheels.
Three main parts of the mechanism

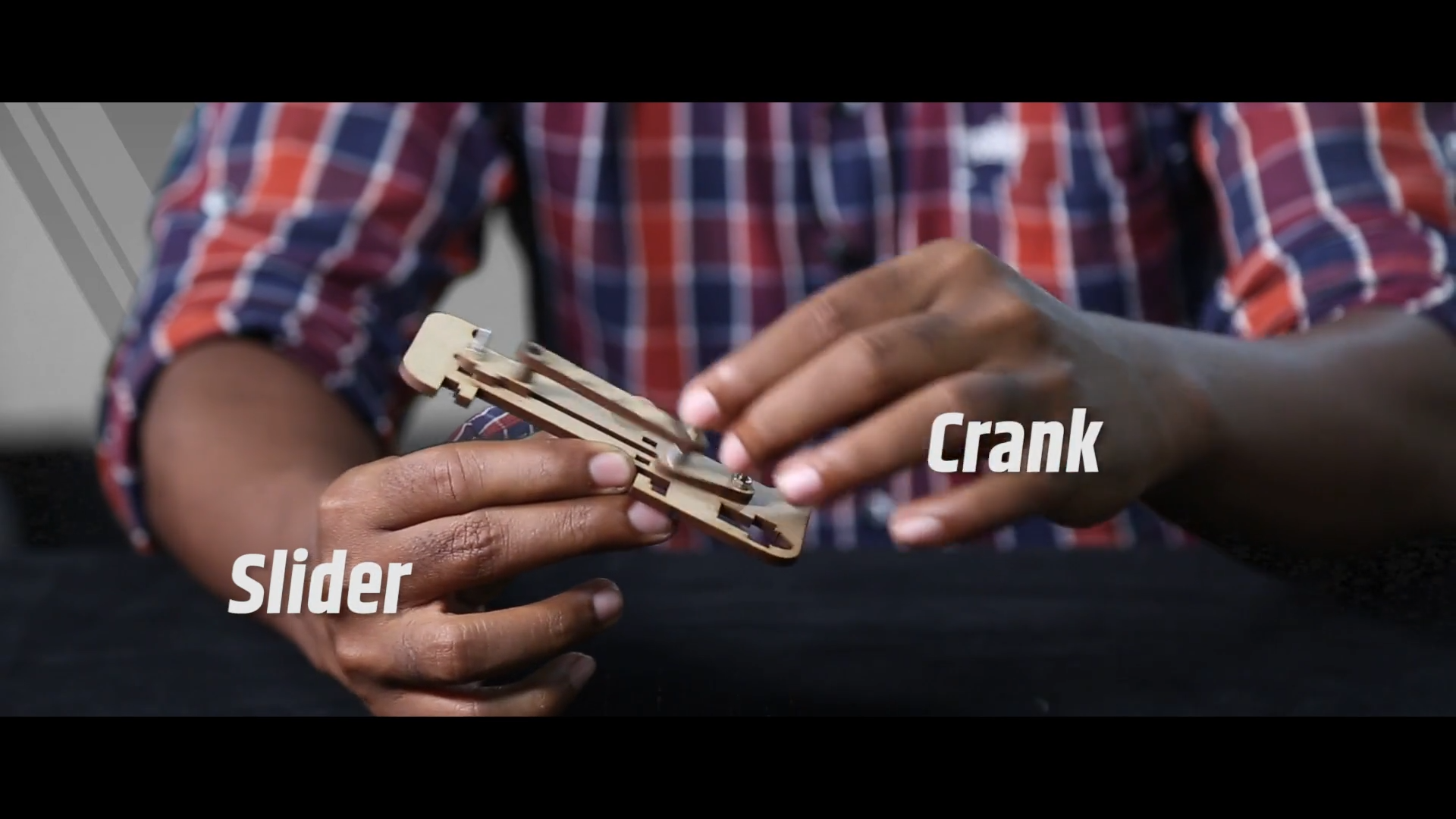

- The slider is the top piece that travels back and forth in a straight line, just like the piston inside the cylinder.
- The crank is the lower piece that spins continuously in a full circle.
- The connecting rod is the bar that joins the slider and the crank together, allowing motion to transfer between them in either direction.
Spinning the wheels of a bike
When fuel explodes and forces the piston to move up and down, the piston acts as a slider. The connecting rod transfers this straight motion to the crank, forcing the crank into continuous rotary motion. In a motorbike, engineers connect this spinning crank to the wheels using gears. As the crank rotates, the gears turn the wheels, allowing the rider to travel.
