Periscope

4 Minutes

Periscope science for kids: learn how periscopes work using reflection, how to make one at home, and their real-world uses. A Tamil science lesson.

  • How plane mirrors reflect light and the law of reflection
  • Making a cardboard periscope using two mirrors at 45 degrees
  • Big periscopes at atomic research centres and in submarines
What this lesson teachesRead the lesson as text

A periscope is an optical instrument that allows a person to view objects above their line of sight while staying hidden or underwater. It uses mirrors to redirect light rays, enabling observation from a concealed location.

The law of reflection

When light shines onto a flat plane mirror, it bounces off the smooth surface. The angle at which the incoming light hits the mirror is called the angle of incidence, and the angle at which it bounces off is the angle of reflection. The law of reflection states that the angle of incidence is always equal to the angle of reflection.

How light moves through a periscope

  • Light travels in a straight line from an outside object into the top opening of the periscope.
  • A plane mirror set at an angle of 45 degrees directs that incoming light straight downward.
  • A second plane mirror at the bottom, also tilted at 45 degrees, reflects the downward beam horizontally into the viewer eyes.
  • If the mirrors were placed at 90 degrees, the light would reflect straight back along its original path instead of turning downward.

Building a simple periscope

A homemade periscope needs a rectangular cardboard body, two small square box pieces, double-sided tape, and two plane mirrors. Tape holds the two mirrors at opposite ends, each tilted at an angle of 45 degrees facing each other. An opening at the top lets light enter from an object, and an opening at the bottom lets the reflected light exit into the eye.

Important uses of periscopes

  • Submarines (neermooghzhi kappal) stay underwater and raise a periscope to monitor the sea surface for obstacles like icebergs or enemy ships.
  • Military personnel stay hidden in safe positions and observe enemy movements through periscopes.

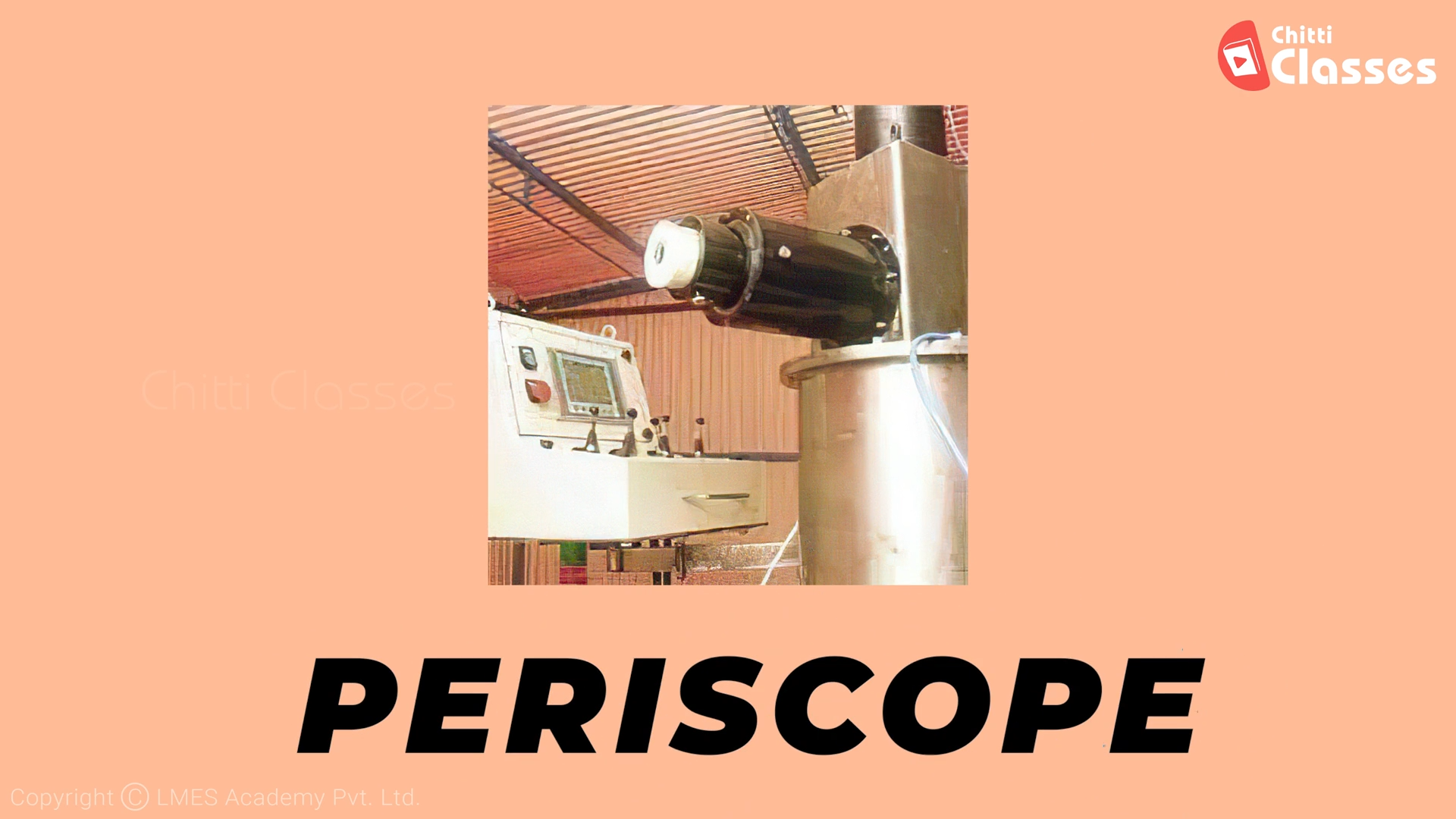

  • The Indira Gandhi Centre for Atomic Research in Tamil Nadu built a ten-meter-long periscope that stands as tall as two electric poles.
  • That instrument cost 2.9 crore rupees and allows workers to monitor nuclear reactors from a safe distance away from intense heat.
