Pantograph
3 Minutes
Pantograph drawing tool for kids: learn how this tool uses similarity to scale designs up or down through a story. A Tamil maths lesson.
- Story of an architect needing to scale a palace design for a queen
- Drawing similar circles using a fixed scale with pen holes
- Using a parallelogram pantograph to enlarge designs to an A3 sheet
What this lesson teachesRead the lesson as text
A pantograph is a mechanical drawing tool used to enlarge a design or reduce it from a larger size to a smaller one while keeping the exact same shape. It works on the mathematical principle of geometric similarity, allowing an artist or architect to duplicate drawings accurately at a different scale.
The challenge of resizing
Centuries ago, an architect spent a month creating a detailed palace renovation plan on a small sheet of paper for a queen. He was faced with the difficult task of transferring that entire design onto a large paper sheet within only two days. Because computers and modern drafting software did not exist four hundred years ago, redrawing everything manually would take too long. The pantograph was invented as a tool to solve this problem, allowing him to deliver the enlarged palace design on time.
The concept of similar images
- A simple demonstration uses a single long scale with one end fixed at a stationary point.
- Two holes are placed at different positions along the scale to hold pens.
- Moving the scale causes the pens to draw two different circles at the same time.
- Both circles share the identical shape but have different sizes, making them similar images.
From simple scales to a parallelogram

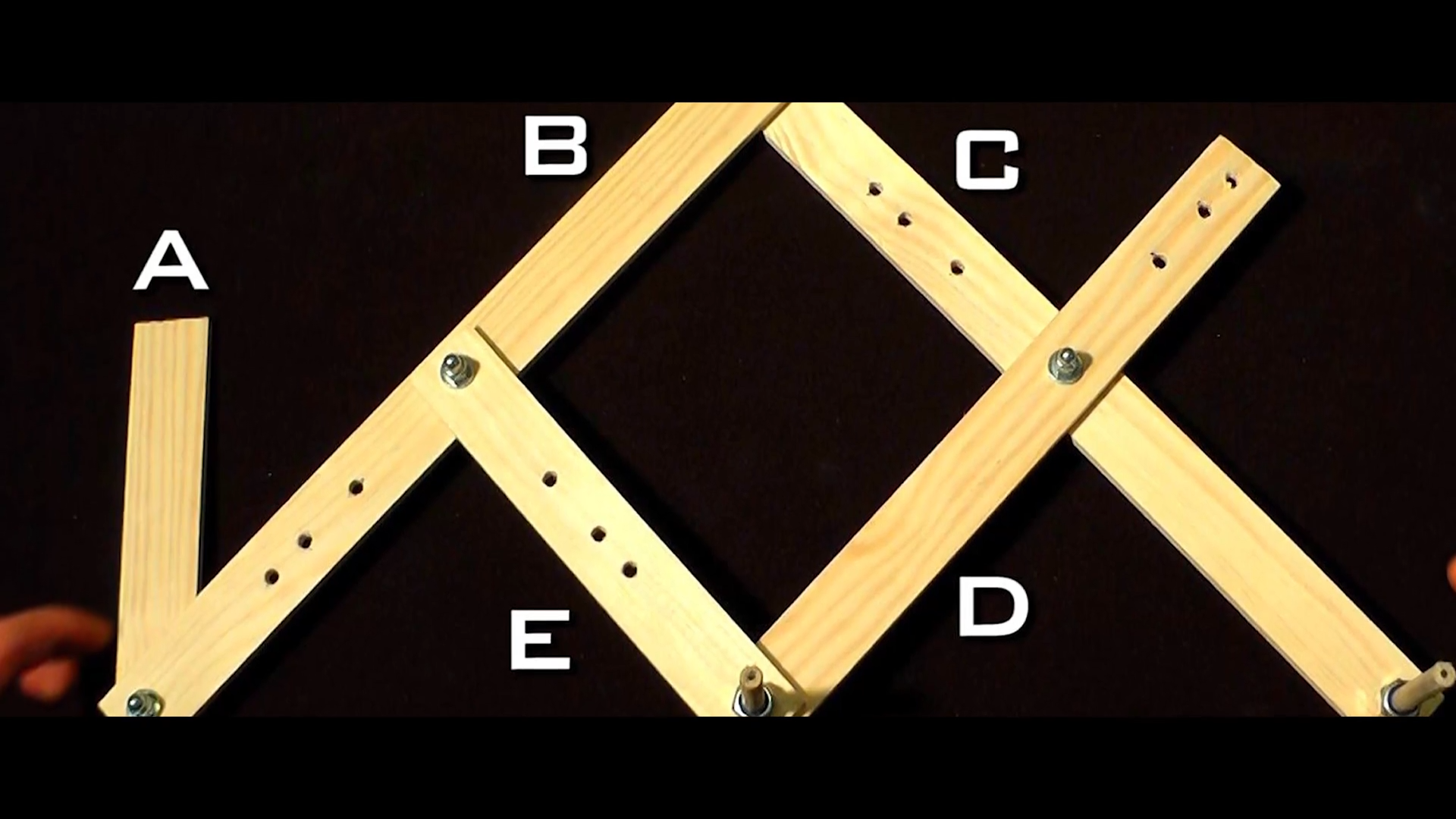

A single pivoting scale can only produce similar circles of different sizes. To duplicate and enlarge complex shapes, multiple scales are linked together to form an adjustable parallelogram. One point of the parallelogram traces over an original small drawing, such as the palace plan, while another point holds a pen that draws the enlarged copy onto a large A3 sheet. The linked mechanical frame ensures that every line and proportion remains identical to the original drawing.
Connection to modern technology
Today, computer software can enlarge or shrink any drawing in a matter of minutes. Even though digital tools have replaced manual drafting devices, they operate on the very same principle of similarity first demonstrated by the pantograph. Understanding how a pantograph links proportional movements reveals the mathematical rules behind both historical drafting instruments and modern computer graphics.
