Introduction to Trigonometry

4 Minutes

Trigonometry basics for students: learn how ancient Egyptians used triangle angles and ratios to build pyramids. A Tamil maths lesson.

  • Cutting squares and rectangles to find runner and riser ratios
  • Using runner and riser ratios to build pyramids at 63 degrees
  • Right-angled triangles, opposite, adjacent, and hypotenuse sides
What this lesson teachesRead the lesson as text

Trigonometry is the branch of mathematics that deals with the sides and angles of triangles. The name comes from tri meaning three, gon meaning angle, and metry meaning measurement, describing the study of measuring three-angled shapes.

Riser, runner, and angles

A right-angled triangle can be formed by cutting squares and rectangles along their diagonals. In a triangle, the horizontal base line is called the runner, and the vertical line is called the riser. Dividing the riser by the runner gives a ratio that directly determines the corner angle:

  • A riser to runner ratio of 0.5 produces an angle of 26 degrees.
  • A ratio of 1 from an equal square cut produces an angle of 45 degrees.
  • A ratio of 2 produces a steeper angle of 63 degrees.
  • As the numerical ratio grows larger, the measured angle also increases.

Building pyramids with triangle ratios

Ancient Egyptians believed in an afterlife and wanted to construct strong tombs that could withstand storms or tsunamis. They chose the triangle because it is the strongest shape, turning it into a three-dimensional pyramid to protect mummies. Builders planned the height and width in advance so the structures would not block the sun. For instance, with a height of 130 feet and a runner of 65 feet from the middle, the ratio was 130 divided by 65, which equals 2. Because a ratio of 2 corresponds to a 63-degree angle, workers laid stones along a 63-degree slant to reach the planned height.

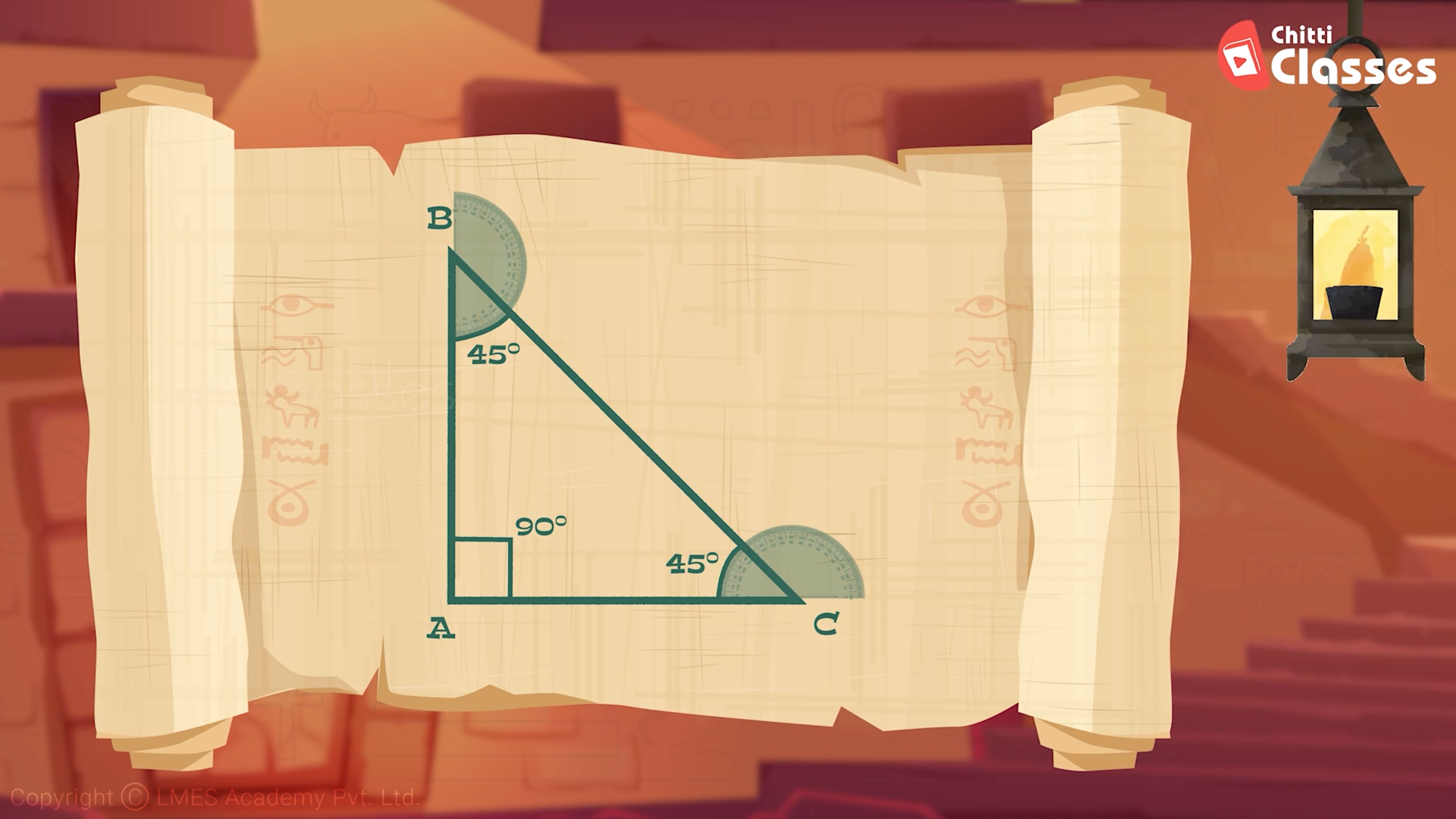

Parts of a right-angled triangle

A right-angled triangle contains one 90-degree angle, and the sum of all three angles is always 180 degrees. If two angles are known, adding them together and subtracting the result from 180 degrees reveals the third angle. In relation to an angle labeled theta, the sides are named by their positions:

  • The side directly facing theta is called the opposite side.
  • The side running beside theta is called the adjacent side.
  • The longest side, named hypotenuse from a Greek word meaning stretched out, sits opposite the 90-degree angle.

History and astronomy

The practical methods used by Egyptian builders were later developed into a deeper mathematical system. An astronomer from Turkey named Hipparchus studied trigonometry in great detail and used it to predict a solar eclipse. Because of his major contributions to the subject, he is recognized as the father of trigonometry.
